*Available as MTH/CF/380 with face plates folded inwards for concealed fixings.

Special non-standard widths available to order.

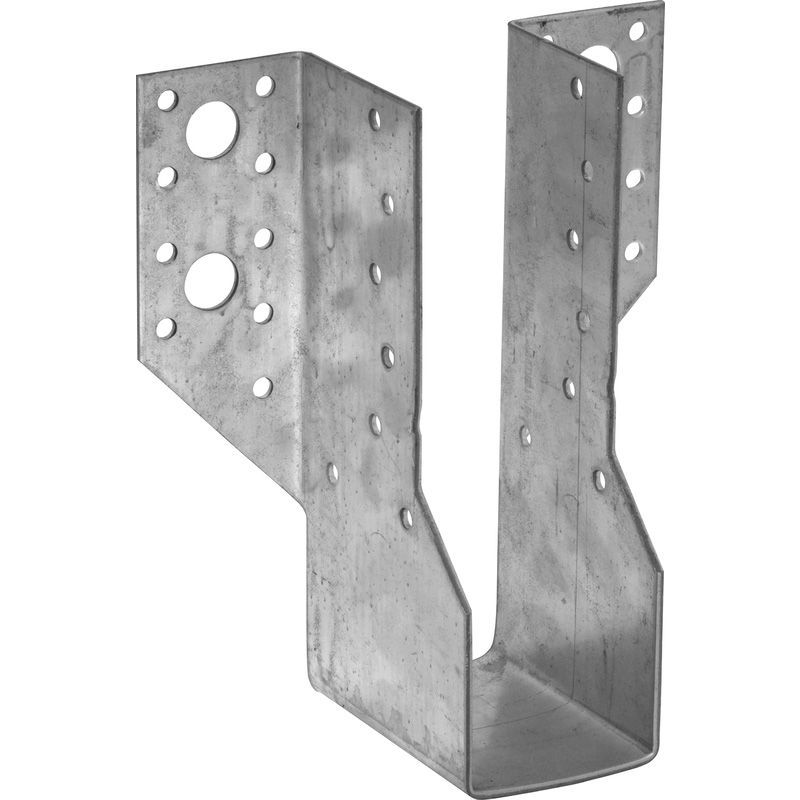

For use in heavy duty applications such as multiple truss units, main trimmer joists, purlin to beam connections or similar situations where unusually heavy loads occur. Bolt hole to suit M12 fixing, nail holes 5mm diameter.

• Material – Manufactured from 1.5mm thick galvanised steel to BS EN 10346 + G275 as standard, or stainless steel hangers are available to order.
• Fixing – Fix using either Type A or Type B fixings in all pre-punched holes:
  • Type A, 30mm x 3.75mm Sheradised Square Twist Nails usually supplied loose for manual fixing.
  • Type B, 35mm x 3.75mm Sheradised Square Twist Nails usually collated for nail gun fixing.
