We stock a large range of high quality construction & marine fixings. As well as the standard range we specialise in larger sizes, longer lengths and larger diameters of screws and fasteners.
Quantity | Price per item | Discount |
10 items | £0.12 | 25% off |
50 items | £0.08 | 50% off |
200 items | £0.05 | 69% off |
1000 items | £0.04 | 75% off |

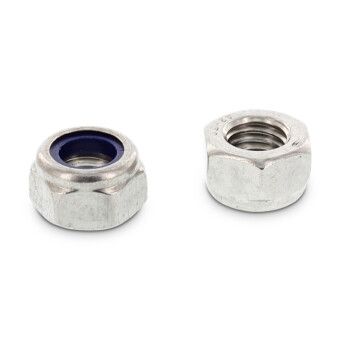

A nyloc nut, also referred to as a nylon-insert lock nut, polymer-insert lock nut, or elastic stop nut, is a kind of locknut with a nylon collar insert that resists turning.
The plastic insert is placed at the end of the nut, with an inner diameter (ID) slightly smaller than the major diameter of the screw. The insert deforms elastically over the threads of the screw, without having threads in turn cut into it. The nylon insert locks the nut by friction against the screw under the applied radial compressive force. Nyloc nuts retain their locking ability up to 250 °F (121 °C).
Diameter (d) | 8 mm |
strength class (Rm) | 800 N/mm² |
Type of thread | Metric |
Corner measurement (e) | 14,38 mm |
Drive size | SW 13 |
Drive shape | Outer hex |
Measurement h (h) | 8 mm |
